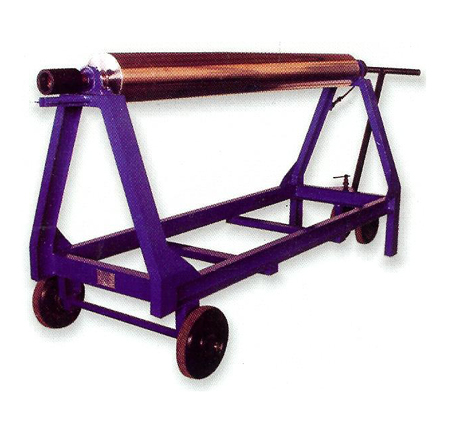

A Frame Trolley
Product Description :
We are one of the leading manufacturer and exporter for A Frame Trolley. We are offering best quality raw materials to fabricate the textile machinery. Our trolley is used in textile fabrics and supply at nominal price.
OPTIONAL EQUIPMENT:
- A - Frame of M.S. Structure of 4"x2" (100 x 50 mm) channel with two fixed wheels of 12"x3" (305 x 76.2 mm), no locking bar, two legs resting on the floor, pin provision for batch towing operation.
- M.S. batching roll with through shaft for 2000 mm roller width
- SS 304 quality cladding on the batching roller
- Independent geared motor drive to batching roller as per speed requirement, with guard.
- Provision of mounting bracket for motor drive and / or suitable adaptor for batch rotation station.
- Provision of a coupling to connect a hydraulic drive
- Hydraulic power pack, with hydraulic motor
- UCP 21 0 pedestal with bearing or tilting bearings
- Oversize batching rollers for high load carrying capacity
SALIENT FEATURES:
Top Quality Materials:- Construction with round structural steel tubing, allows highest weight util isation with lowest frame weight.
- Oversize pedestal bearing and high quality wheels allow high roll weight.
Easy To Operate:
- Transport around the plant is possible with very low operator effort
- Handles and locking bars are provided at both ends, for convenience of operation.
Technical Specification:
| Model | Cloth Width |
Roller Width (W) | Roller Diameter (D*) | Limiting Load Kg. | Overall Dimension (mm) L x B* x H* |
BRC 160 |
1600 |
1800 |
215 |
5000 |
2370 x 960 x 1320 |
BRC 180 |
1800 |
2000 |
215 |
5000 |
2570 x 960 x 1320 |
BRC 200 |
2000 |
2200 |
215 |
5000 |
2770 x 1060 x 1320 |
BRC 240 |
2400 |
2600 |
215 |
5000 |
3170 x 1060 x 1320 |
BRC 280 |
2800 |
3000 |
215 |
5000 |
3570 x 1060 x 1348 |
BRC 280 H |
2800 |
3000 |
270 |
7500 |
3570 x 1060 x 1320 |
BRC 300 |
3000 |
3200 |
215 |
4000 |
3770 x 1060 x 1320 |
BRC 300 H |
3000 |
3200 |
370 |
7500 |
3770 x 1060 x 1348 |
BRC 320 |
3200 |
3400 |
215 |
5000 |
3970 x 1060 x 1320 |
BRC 320 H |
3200 |
3400 |
270 |
7500 |
3970 x 1060 x 1348 |
